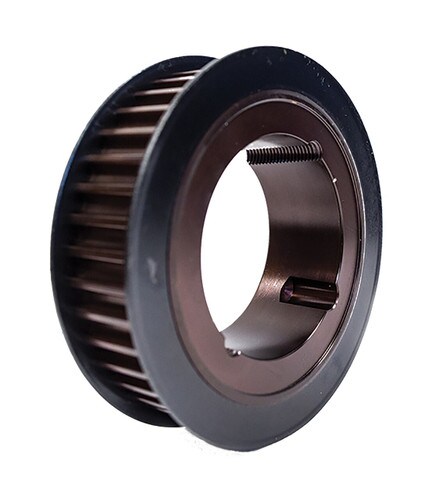

60-14MX37-3525 - B & B MANUFACTURING
- Teeth: 60
- Tooth Style: GT2 14mm
- Type: B1F
- Bushing Style: 3525
SPECIFICATIONS
| Teeth | 60 |
|---|---|
| Tooth Style | GT2 14mm |
| Type | B1F |
| Bushing Style | 3525 |
| Bore Type | TL |
| Pitch Diameter Inch | 10.527 |
| Outer Diameter Inch | 10.417 |
| Flange Diameter Inch | 11.067 |
| Minimum Bore Inch | 1.500 |
| Maximum Bore Inch | 3.9375 |
| Face Width Inch | 2.063 |
| Overall Length Inch | 2.5 |
| Pulley Belt Width Inch | 1.74 |
| Pitch Diameter MM | 267.386 |
| Outer Diameter MM | 264.592 |
| Flange Diameter MM | 281.102 |
| Face Width MM | 52.4 |
| Overall Length MM | 63.5 |
| Pulley Belt Width MM | 44.196 |
| Material | Cast Iron |
| Finish | Black Oxide |
| Flange Material | Steel |
