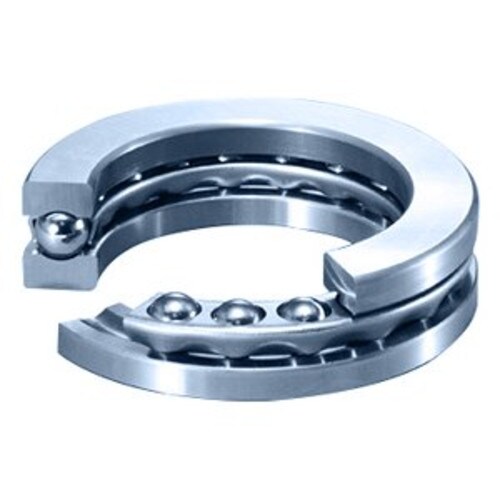

51110 - FAG BEARING
- 51110 Ball Bearing
- Bore / Inner Diameter Inch:1.969
- Bore / Inner Diameter MM:50
- Outside Diameter Inch:2.756
- Outside Diameter MM:70
- Width Inch:0.551
- Width MM:14
- Series:
- Replacing:
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.969 |
|---|---|
| Bore / Inner Diameter MM | 50 |
| Outside Diameter Inch | 2.756 |
| Outside Diameter MM | 70 |
| Width Inch | 0.551 |
| Width MM | 14 |
| Max Speed RPM | 6800 |
| Reference Speed RPM | 5200 |
| Minimum Temperature C | -30 |
| Maximum Temperature C | 150 |
| Dynamic Load Capacity N | 27000 |
| Dynamic Load Capacity N Axail | 27000 |
| Static Load Capacity N | 75000 |
| Static Load Capacity N Axail | 75000 |
