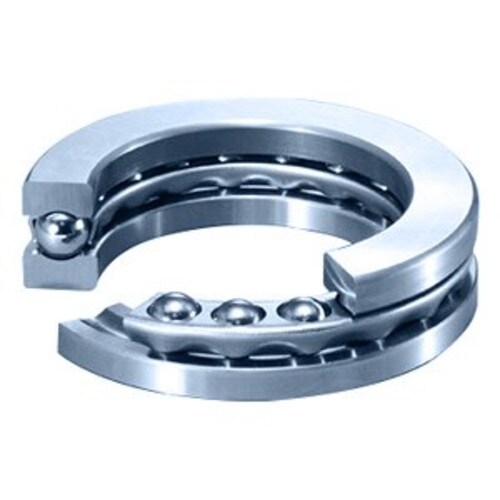

51105 - NSK
The NSK 51105 is a standard, double-bore, single-direction thrust bearing meant to bear axial loads. Its strong and well-designed steel cages give it the ability to endure prolonged wear and tear in harsh, high-temperature and high-pressure environments. The 51105 bearing, when lubricated with grease, has a maximum rotational speed of 4,800 revolutions per minute and, when lubricated with oil, a maximum speed of 7,100 revolutions per minute. Also, it has a static load-bearing capacity of 19,700 Newtons and a dynamic load-bearing capacity of 37,000 Newtons.
The first bore on the NSK 51105 measures 25 millimeters, and the second bore measures 26 millimeters. Its outer diameter is 42 millimeters, and it is 11 millimeters wide. It is also able to function reliably at temperatures of 120 degrees Celsius and above and weighs 0.11 pounds.
|Bore / Inner Diameter Inch||0.984|
|Bore / Inner Diameter MM||25|
|Rolling Element||Ball Bearing|
|Bore 2 Inch||1.024|
|Bore 2 MM||26|
