51105 - FAG BEARING

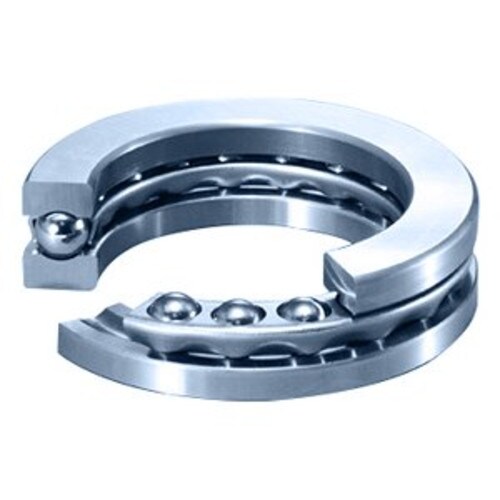

- 51105 Ball Bearing
- Bore / Inner Diameter Inch:0.984
- Bore / Inner Diameter MM:25
- Outside Diameter Inch:1.654
- Outside Diameter MM:42
- Width Inch:0.433
- Width MM:11
- Series:
- Replacing:
SPECIFICATIONS
| Bore / Inner Diameter Inch | 0.984 |
|---|---|
| Bore / Inner Diameter MM | 25 |
| Outside Diameter Inch | 1.654 |
| Outside Diameter MM | 42 |
| Width Inch | 0.433 |
| Width MM | 11 |
| Max Speed RPM | 9700 |
| Reference Speed RPM | 9500 |
| Minimum Temperature C | -30 |
| Maximum Temperature C | 150 |
| Dynamic Load Capacity N | 18100 |
| Dynamic Load Capacity N Axail | 18100 |
| Static Load Capacity N | 35500 |
| Static Load Capacity N Axail | 35500 |
