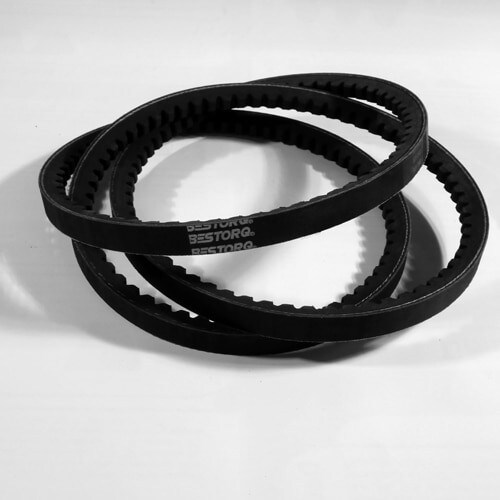

3VX600 - BESTORQ
The Bestorq 3VX600 is a notched single wrapped transmission belt that delivers premium performance, and the "X" in the part number indicates that this belt has load ratings that exceed those of standard wrapped belts. The 3VX600 is especially engineered from a synthetic rubber compound that makes for a cool running, energy efficient, oil resistant, and heat resistant belt.
The special manufacturing process creates a polymer that makes the Bestorq 3VX600 very flexible and resistant to wear from long-term use. The belt's helical tensile cords and notches are engineered to provide maximum flex and adhesion on small and large pulleys alike. This raw edge V-belt is manufactured to run as a matched set with other Bestorq SPZX belts of the same series. The Bestorq 3VX600 has a top width of 0.38 inches and a thickness of 0.32 inches and is built to fit ISO standard dimension multi-groove pulleys.
SPECIFICATIONS
| Belt Width Inch | 0.38 |
|---|---|
| Belt Width MM | 9.7 |
| Outside Belt Diameter Inch | 60.00 |
| Outside Belt Diameter MM | 1524.0 |
| Belt Thickness / Sidewall Depth Inch | 0.32 |
| Belt Thickness / Sidewall Depth MM | 8.1 |
| GTIN | 840593108536 |
| Model Number | 3VX600 |
