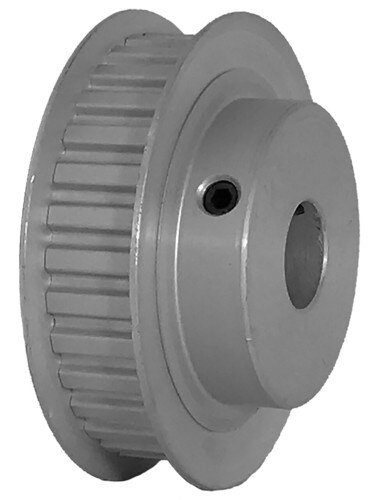

32XL037-6FA6 - B & B MANUFACTURING
- Teeth: 32
- Tooth Style: XL
- Type: 6F
- Bore Type: Finished Bore
SPECIFICATIONS
| Teeth | 32 |
|---|---|
| Tooth Style | XL |
| Type | 6F |
| Bore Type | Finished Bore |
| Pitch Diameter Inch | 2.037 |
| Outer Diameter Inch | 2.017 |
| Flange Diameter Inch | 2.25 |
| Bore / Inner Diameter Inch | 0.5 |
| Minimum Bore Inch | 0.500 |
| Maximum Bore Inch | 1.187 |
| Face Width Inch | 0.563 |
| Overall Length Inch | 0.906 |
| Pulley Belt Width Inch | 0.43 |
| Hub Diameter Inch | 1.437 |
| Pitch Diameter MM | 51.74 |
| Outer Diameter MM | 51.232 |
| Flange Diameter MM | 57.15 |
| Bore / Inner Diameter MM | 12.7 |
| Face Width MM | 14.3 |
| Overall Length MM | 23.012 |
| Pulley Belt Width MM | 10.922 |
| Hub Diameter MM | 36.5 |
| Thread Size | 2 x 10-32 @ 90° |
| Material | Aluminum |
| Finish | Clear Anodized |
| Flange Material | Aluminum |
