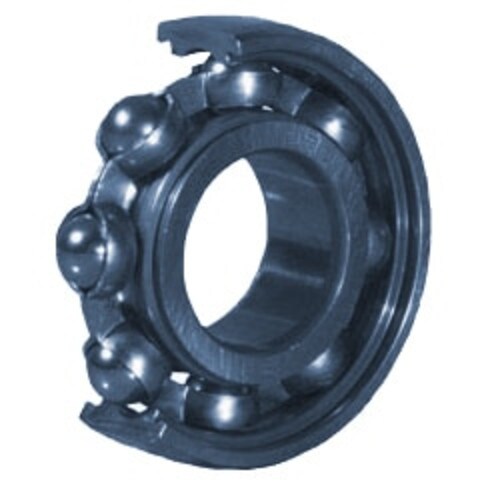

309 - SKF
- Bore / Inner Diameter Inch : 1.772
- Bore / Inner Diameter MM : 45.0
- Outside Diameter Inch : 3.937
- Outside Diameter MM : 100.0
- Width Inch : 0.984
- Width MM : 25.0
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.772 |
|---|---|
| Bore / Inner Diameter MM | 45.0 |
| Outside Diameter Inch | 3.937 |
| Outside Diameter MM | 100.0 |
| Width Inch | 0.984 |
| Width MM | 25.0 |
| Dynamic Load Capacity N | 12364.0 |
| Static Load Capacity N | 9892.0 |
| Max Speed RPM | 13000.0 |
| Limiting Speed RPM | 7500.0 |
| Weight (kg) | 0.88 |
| Model Number | 309 |
