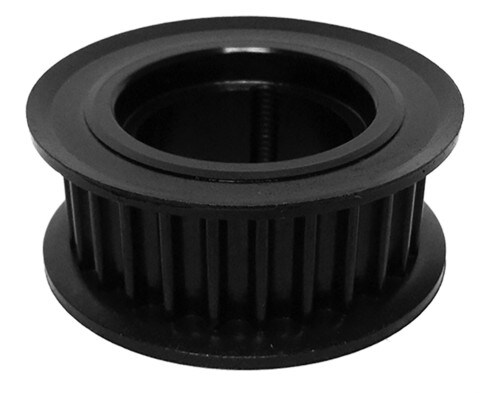

28-8MX21-1108 - B & B MANUFACTURING
- Teeth: 28
- Tooth Style: GT2 8mm
- Type: A1F
- Bushing Style: 1108
SPECIFICATIONS
Teeth | 28 |
---|---|
Tooth Style | GT2 8mm |
Type | A1F |
Bushing Style | 1108 |
Bore Type | TL |
Pitch Diameter Inch | 2.807 |
Outer Diameter Inch | 2.744 |
Flange Diameter Inch | 3.15 |
Minimum Bore Inch | 0.500 |
Maximum Bore Inch | 1.125 |
Face Width Inch | 1.203 |
Overall Length Inch | 1.203 |
Pulley Belt Width Inch | 0.96 |
Pitch Diameter MM | 71.298 |
Outer Diameter MM | 69.698 |
Flange Diameter MM | 80.01 |
Face Width MM | 30.556 |
Overall Length MM | 30.556 |
Pulley Belt Width MM | 24.384 |
Material | Steel |
Finish | Black Oxide |
Flange Material | Steel |
