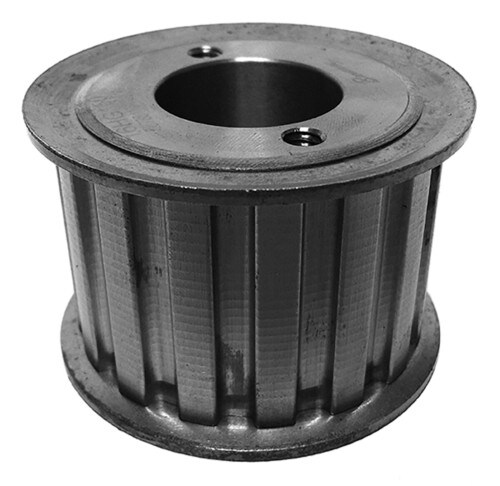

26HH150 - B & B MANUFACTURING
- Teeth: 26
- Tooth Style: H
- Type: 16
- Bushing Style: H
SPECIFICATIONS
| Teeth | 26 |
|---|---|
| Tooth Style | H |
| Type | 16 |
| Bushing Style | H |
| Bore Type | Split Taper |
| Pitch Diameter Inch | 4.138 |
| Outer Diameter Inch | 4.084 |
| Flange Diameter Inch | 4.375 |
| Minimum Bore Inch | 0.375 |
| Maximum Bore Inch | 1.4375 |
| Face Width Inch | 1.75 |
| Overall Length Inch | 1.938 |
| Pitch Diameter MM | 105.105 |
| Outer Diameter MM | 103.734 |
| Flange Diameter MM | 111.125 |
| Face Width MM | 44.45 |
| Overall Length MM | 49.225 |
| Material | Cast Iron |
| Flange Material | Steel |
