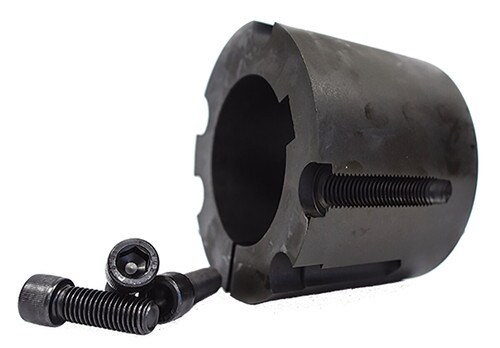

2517X2-3/16 - B & B MANUFACTURING
- Bushing Style: 2517
- Bore Type: Finished Bore
- Bore / Inner Diameter Inch: 2.1875
- Minimum Bore Inch: 0.500
SPECIFICATIONS
| Bushing Style | 2517 |
|---|---|
| Bore Type | Finished Bore |
| Bore / Inner Diameter Inch | 2.1875 |
| Minimum Bore Inch | 0.500 |
| Maximum Bore Inch | 2.6875 |
| Bore / Inner Diameter MM | 55.563 |
| Thread Size | 1/2 x 1 |
| A Dim Inch | 3.375 |
| B Dim Inch | 1.75 |
| C Dim Inch | 4.875 |
| D Dim Inch | 3.25 |
| Torque Capacity Lb/Inch | 11300 |
| Bolt Circle Inch | 3.25 |
| Material | Steel |
| Finish | Black Oxide |
