22219 EK/C3 - SKF
- Bore / Inner Diameter Inch: 3.74
- Bore / Inner Diameter MM: 95
- Outside Diameter Inch: 6.693
- Outside Diameter MM: 170
- Width Inch: 1.693
- Width MM: 43
- Seal Type: Open
SPECIFICATIONS
| Bore / Inner Diameter Inch | 3.74 |
|---|---|
| Bore / Inner Diameter MM | 95 |
| Outside Diameter Inch | 6.693 |
| Outside Diameter MM | 170 |
| Width Inch | 1.693 |
| Width MM | 43 |
| Seal Type | Open |
| Number of Rows of Rollers | Double Row |
| Bearing Locking Style | Adapter Mount |

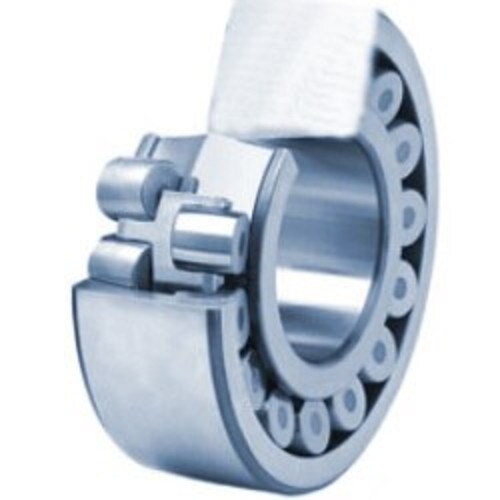

| Rolling Element | Spherical Roller Bearing |
| Cage Material | Steel |
| Bore Profile | Tapered |
| Relubricatable | Yes |
| Withdrawal Nut | KM21 |
| Withdrawal Sleeve | AHX319 |
| Adapter Part Number MM | H319 |
| Internal Fit / Preload | C3 |
| Adapter Part Number Inch | SNW19, H319, HA319, HE319 |
