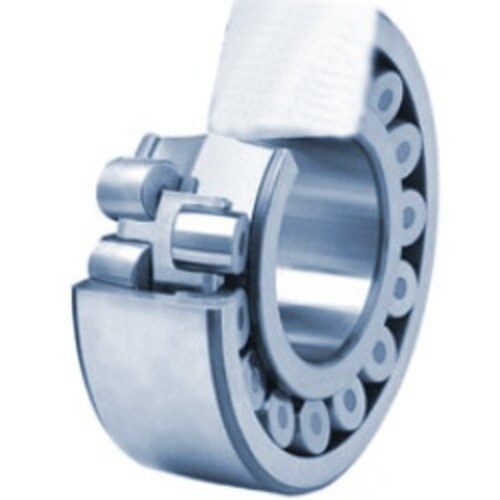

22216 EK/C3 - SKF
- Bore / Inner Diameter Inch: 3.15
- Bore / Inner Diameter MM: 80
- Outside Diameter Inch: 5.512
- Outside Diameter MM: 140
- Width Inch: 1.299
- Width MM: 33
- Seal Type: Open
SPECIFICATIONS
| Bore / Inner Diameter Inch | 3.15 |
|---|---|
| Bore / Inner Diameter MM | 80 |
| Outside Diameter Inch | 5.512 |
| Outside Diameter MM | 140 |
| Width Inch | 1.299 |
| Width MM | 33 |
| Seal Type | Open |
| Number of Rows of Rollers | Double Row |
| Bearing Locking Style | Adapter Mount |
| Rolling Element | Spherical Roller Bearing |
| Cage Material | Steel |
| Bore Profile | Tapered |
| Relubricatable | Yes |
| Withdrawal Nut | KM18 |
| Withdrawal Sleeve | AH316 |
| Adapter Part Number MM | H316 |
| Internal Fit / Preload | C3 |
| Adapter Part Number Inch | SNW16, H316, HA316, HE316 |
