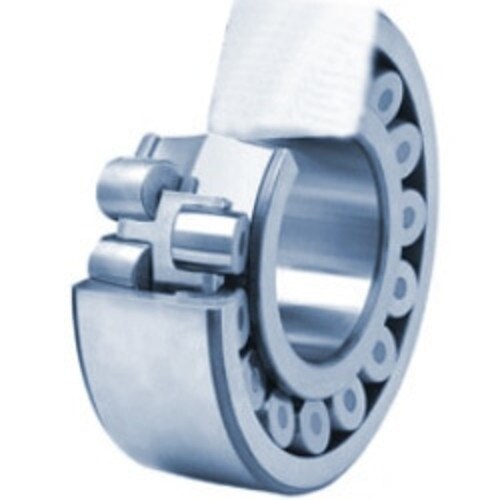

22215 EK/C3 - SKF
- Bore / Inner Diameter Inch: 2.953
- Bore / Inner Diameter MM: 75
- Outside Diameter Inch: 5.118
- Outside Diameter MM: 130
- Width Inch: 1.22
- Width MM: 31
- Seal Type: Open
SPECIFICATIONS
| Bore / Inner Diameter Inch | 2.953 |
|---|---|
| Bore / Inner Diameter MM | 75 |
| Outside Diameter Inch | 5.118 |
| Outside Diameter MM | 130 |
| Width Inch | 1.22 |
| Width MM | 31 |
| Seal Type | Open |
| Number of Rows of Rollers | Double Row |
| Bearing Locking Style | Adapter Mount |
| Rolling Element | Spherical Roller Bearing |
| Cage Material | Steel |
| Bore Profile | Tapered |
| Relubricatable | Yes |
| Withdrawal Nut | KM17 |
| Withdrawal Sleeve | AH315 |
| Adapter Part Number MM | H315 |
| Internal Fit / Preload | C3 |
| Adapter Part Number Inch | SNW15, H315, HA315, HE315 |
