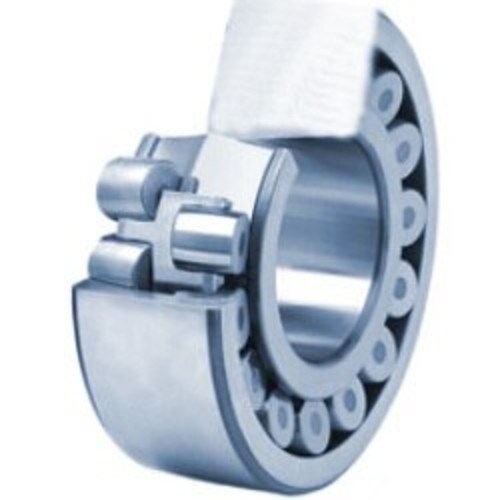

22213 EK - SKF
- Bore / Inner Diameter Inch: 2.559
- Bore / Inner Diameter MM: 65
- Outside Diameter Inch: 4.724
- Outside Diameter MM: 120
- Width Inch: 1.22
- Width MM: 31
- Seal Type: Open
SPECIFICATIONS
| Bore / Inner Diameter Inch | 2.559 |
|---|---|
| Bore / Inner Diameter MM | 65 |
| Outside Diameter Inch | 4.724 |
| Outside Diameter MM | 120 |
| Width Inch | 1.22 |
| Width MM | 31 |
| Seal Type | Open |
| Number of Rows of Rollers | Double Row |
| Bearing Locking Style | Adapter Mount |
| Rolling Element | Spherical Roller Bearing |
| Cage Material | Steel |
| Bore Profile | Tapered |
| Relubricatable | Yes |
| Withdrawal Nut | KM15 |
| Withdrawal Sleeve | AH313 |
| Adapter Part Number MM | H313 |
| Internal Fit / Preload | C0 |
| Adapter Part Number Inch | SNW13, H313, HA313, HE313 |
