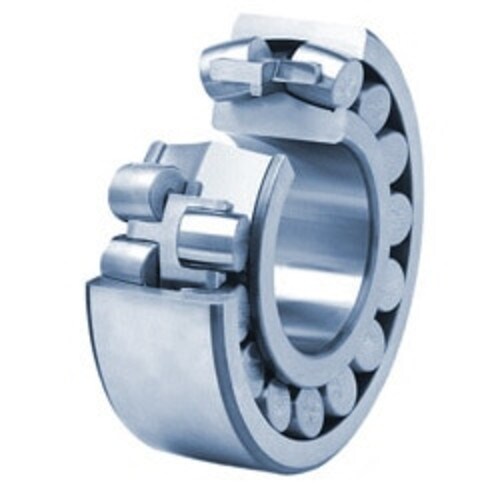

22208 E - SKF
- Bore / Inner Diameter Inch: 1.575
- Bore / Inner Diameter MM: 40
- Outside Diameter Inch: 3.15
- Outside Diameter MM: 80
- Width Inch: 0.906
- Width MM: 23
- Seal Type: Open
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.575 |
|---|---|
| Bore / Inner Diameter MM | 40 |
| Outside Diameter Inch | 3.15 |
| Outside Diameter MM | 80 |
| Width Inch | 0.906 |
| Width MM | 23 |
| Seal Type | Open |
| Number of Rows of Rollers | Double Row |
| Bearing Locking Style | Shaft Mount |
| Rolling Element | Spherical Roller Bearing |
| Cage Material | Steel |
| Bore Profile | Straight |
| Relubricatable | Yes |
| Withdrawal Nut | Not Applicable |
| Withdrawal Sleeve | Not Applicable |
| Internal Fit / Preload | C0 |
