2209-2RS-TVH - FAG BEARING

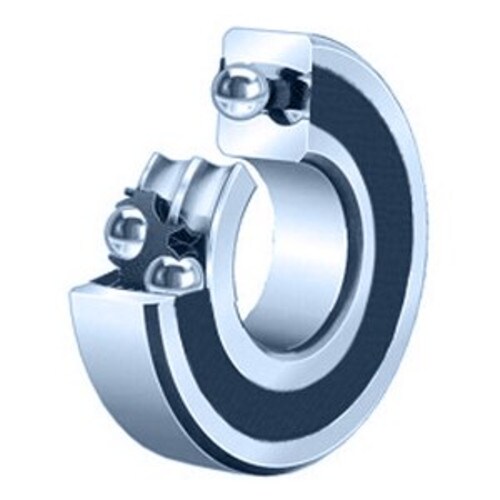

- 2209-2RS-TVH Ball Bearing
- Bore / Inner Diameter Inch:1.772
- Bore / Inner Diameter MM:45
- Outside Diameter Inch:3.346
- Outside Diameter MM:85
- Width Inch:0.906
- Width MM:23
- Series:
- Replacing:2209.2RS.TV
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.772 |
|---|---|
| Bore / Inner Diameter MM | 45 |
| Outside Diameter Inch | 3.346 |
| Outside Diameter MM | 85 |
| Width Inch | 0.906 |
| Width MM | 23 |
| Max Speed RPM | 4650 |
| Minimum Temperature C | -20 |
| Maximum Temperature C | 100 |
| Dynamic Load Capacity N | 22000 |
| Dynamic Load Capacity N Radial | 22000 |
| Static Load Capacity N | 7300 |
| Static Load Capacity N Radial | 7300 |
| Replacing | 2209.2RS.TV |
