2/3VX750 - D&D GLOBAL
The D&D Global 2/3VX750 raw-edge, cogged wedge PowerDrive belt comes in both a single-belt and banded model, both made from the same materials and both offering the same levels of performance and quality. Both versions of the D&D Global 2/3VX750 are built of an engineered synthetic rubber compound made even more flexible thanks to reinforced cogs able to resist oil, heat, cracking, and other forms of wear.
The banded D&D Global 2/3VX750 features a heavy-duty backing joining it together, producing numerous ribs. This improves energy efficiency, running cooler and lasting longer in service. It also provides increased stability and resistance with larger loads and is most recommended when running multi-groove sheaves. All the components in the D&D Global 2/3VX750 are constructed using the most current belt technology.

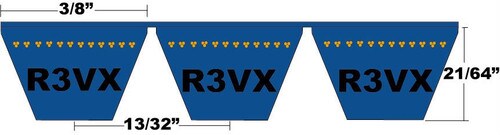

SPECIFICATIONS
| Intended Pulley Angle | 0.32 |
|---|---|
| Number of Ribs | 2 |
| Type | 3VX |
| Belt Width Inch | 0.76 |
| Series | Dura-Extreme Wedge |
| Upper Width Per Section Inch | 0.375 |
| Weight (lbs) | 0.99 |
| Outside Belt Diameter Inch | 75.0 |
| Outside Belt Diameter MM | 1905.0 |
| Belt Thickness / Sidewall Depth Inch | 0.328 |
| Belt Thickness / Sidewall Depth MM | 8.33 |
