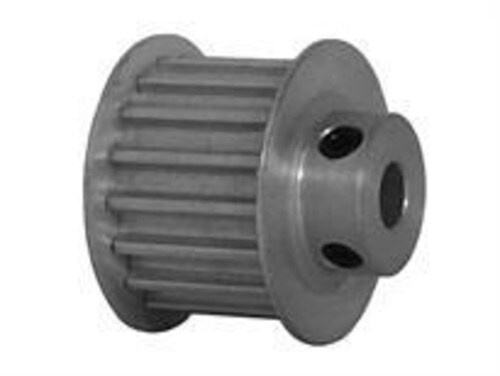

17-5M15-6FA3 - B & B MANUFACTURING
- Teeth: 17
- Tooth Style: HTD 5mm
- Type: 6F
- Bore Type: Finished Bore
SPECIFICATIONS
| Teeth | 17 |
|---|---|
| Tooth Style | HTD 5mm |
| Type | 6F |
| Bore Type | Finished Bore |
| Pitch Diameter Inch | 1.065 |
| Outer Diameter Inch | 1.02 |
| Flange Diameter Inch | 1.187 |
| Bore / Inner Diameter Inch | 0.25 |
| Minimum Bore Inch | 0.250 |
| Maximum Bore Inch | 0.375 |
| Face Width Inch | 0.781 |
| Overall Length Inch | 1.025 |
| Pulley Belt Width Inch | 0.65 |
| Hub Diameter Inch | 0.625 |
| Pitch Diameter MM | 27.051 |
| Outer Diameter MM | 25.908 |
| Flange Diameter MM | 30.15 |
| Bore / Inner Diameter MM | 6.35 |
| Face Width MM | 19.837 |
| Overall Length MM | 26.035 |
| Pulley Belt Width MM | 16.51 |
| Hub Diameter MM | 15.875 |
| Thread Size | 2 x 8-32 @ 90° |
| Material | Aluminum |
| Finish | Clear Anodized |
| Flange Material | Aluminum |
