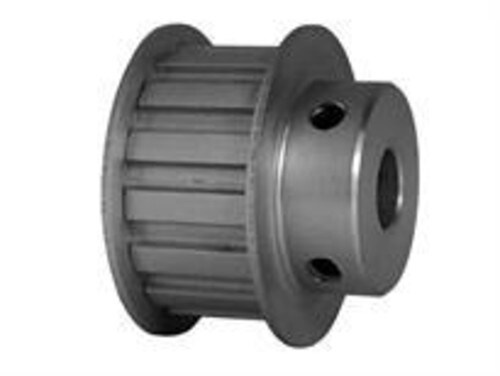

15L075-6FA6 - B & B MANUFACTURING
- Teeth: 15
- Tooth Style: L
- Type: 6F
- Bore Type: Finished Bore
SPECIFICATIONS
| Teeth | 15 |
|---|---|
| Tooth Style | L |
| Type | 6F |
| Bore Type | Finished Bore |
| Pitch Diameter Inch | 1.79 |
| Outer Diameter Inch | 1.76 |
| Flange Diameter Inch | 2.031 |
| Bore / Inner Diameter Inch | 0.5 |
| Minimum Bore Inch | 0.500 |
| Maximum Bore Inch | 1.125 |
| Face Width Inch | 1 |
| Overall Length Inch | 1.5 |
| Hub Diameter Inch | 1.375 |
| Pitch Diameter MM | 45.466 |
| Outer Diameter MM | 44.704 |
| Flange Diameter MM | 51.587 |
| Bore / Inner Diameter MM | 12.7 |
| Face Width MM | 25.4 |
| Overall Length MM | 38.1 |
| Hub Diameter MM | 34.925 |
| Thread Size | 2 x 1/4-20 @ 90° |
| Material | Aluminum |
| Finish | Clear Anodized |
| Flange Material | Aluminum |
