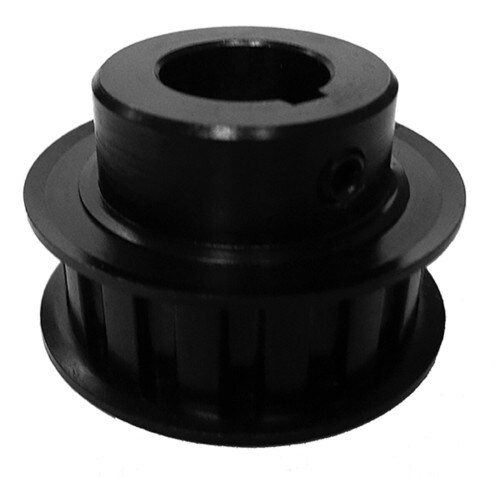

14LF050X1/2 - B & B MANUFACTURING
- Teeth: 14
- Tooth Style: L
- Type: 6F
- Bore Type: Finished Bore
SPECIFICATIONS
| Teeth | 14 |
|---|---|
| Tooth Style | L |
| Type | 6F |
| Bore Type | Finished Bore |
| Pitch Diameter Inch | 1.671 |
| Outer Diameter Inch | 1.641 |
| Flange Diameter Inch | 1.906 |
| Bore / Inner Diameter Inch | 0.5 |
| Minimum Bore Inch | 0.500 |
| Maximum Bore Inch | 0.875 |
| Face Width Inch | 0.75 |
| Overall Length Inch | 1.25 |
| Pulley Belt Width Inch | 0.57 |
| Hub Diameter Inch | 1.125 |
| Pitch Diameter MM | 42.443 |
| Outer Diameter MM | 41.681 |
| Flange Diameter MM | 48.412 |
| Bore / Inner Diameter MM | 12.7 |
| Face Width MM | 19.05 |
| Overall Length MM | 31.75 |
| Pulley Belt Width MM | 14.478 |
| Hub Diameter MM | 28.575 |
| Thread Size | 1 x 1/4-20 |
| Material | Steel |
| Finish | Black Oxide |
| Flange Material | Steel |
