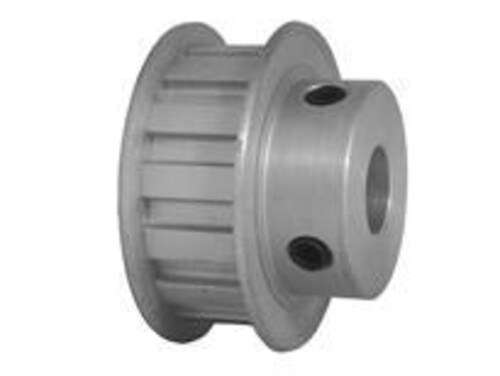

14L050-6FA6 - B & B MANUFACTURING

(0)No Reviews yet
$17.69

Details

Details

Teeth14
Tooth StyleL
Type6F
Bore TypeFinished Bore
Pitch Diameter Inch1.671
Outer Diameter Inch1.641
Flange Diameter Inch1.906
Bore / Inner Diameter Inch0.5
Minimum Bore Inch0.500
Maximum Bore Inch1
Face Width Inch0.719
Overall Length Inch1.188
Pulley Belt Width Inch0.56
Hub Diameter Inch1.25
Pitch Diameter MM42.443
Outer Diameter MM41.681
Flange Diameter MM48.412
Bore / Inner Diameter MM12.7
Face Width MM18.263
Overall Length MM30.175
Pulley Belt Width MM14.224
Hub Diameter MM31.75
Thread Size2 x 1/4-20 @ 90°
MaterialAluminum
FinishClear Anodized
Flange MaterialAluminum

UNIT PRICE:

$17.69



UNIT PRICE:

SPECIFICATIONS

Teeth14
Tooth StyleL
Type6F
Bore TypeFinished Bore
Pitch Diameter Inch1.671
Outer Diameter Inch1.641
Flange Diameter Inch1.906
Bore / Inner Diameter Inch0.5
Minimum Bore Inch0.500
Maximum Bore Inch1
Face Width Inch0.719
Overall Length Inch1.188
Pulley Belt Width Inch0.56
Hub Diameter Inch1.25
Pitch Diameter MM42.443
Outer Diameter MM41.681
Flange Diameter MM48.412
Bore / Inner Diameter MM12.7
Face Width MM18.263
Overall Length MM30.175
Pulley Belt Width MM14.224
Hub Diameter MM31.75
Thread Size2 x 1/4-20 @ 90°
MaterialAluminum
FinishClear Anodized
Flange MaterialAluminum
