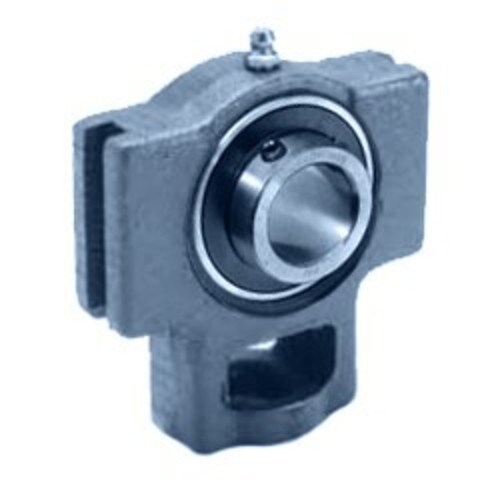

135123 WSTU-SCM-115 - DODGE
- Length Across Bore Inch: 2.625
- Length Across Bore MM: 66.675
- Slot to Slot Distance Inch: 5.125
- Slot to Slot Distance MM: 130.175
- Slot Width Inch: 1.063
- Slot Width MM: 27
- Bearing Insert Part Number: INS-SCM-115
- Bore / Inner Diameter Inch: 1.938
SPECIFICATIONS
| Length Across Bore Inch | 2.625 |
|---|---|
| Length Across Bore MM | 66.675 |
| Slot to Slot Distance Inch | 5.125 |
| Slot to Slot Distance MM | 130.175 |
| Slot Width Inch | 1.063 |
| Slot Width MM | 27 |
| Bearing Insert Part Number | INS-SCM-115 |
| Bore / Inner Diameter Inch | 1.938 |
| Bore / Inner Diameter MM | 49.225 |
| Housing Style | Unit Only |
| Housing Material | Cast Iron |
| Bolt Center to Center Inch | 5.7 |
| Bolt Center to Center MM | 146.5 |
| Bearing Locking Style | Set Screw |
| Base to Center Height Inch | 1.875 |
| Base to Center Height MM | 47.625 |
| Compatible Take-Up Frame | WS502 |
