126283 F4B-SCM-204 - DODGE

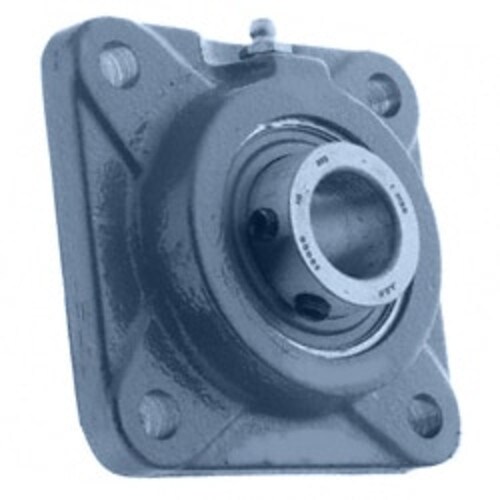

Prepare for extreme environments with this medium-duty Dodge 126283 F4B-SCM-204 flange bearing. A proprietary Proguard contact seal provides protection against the intrusion of dust, dirt or debris and prevents the loss of lubricant. The cast-iron housing makes use of a four-bolt flange, and it remains fixed in position thanks to the set screws that lock it into place. As a non-expansion setting, it operates at temperatures of up to 220 degrees Fahrenheit. An anti-rotation pin prevents any misalignment and reduces the need for maintenance.
The positive seal design of this flange bearing ensures uniform lip contact with the inner seal. The result is maintenance of lubrication and a reduction of friction. The lip contact also reduces the heat buildup, lessening the risk of cracking. With a radial static load capacity of and a dynamic radial load capacity, this tough bearing services a range of applications.
|Bore / Inner Diameter Inch||2.25|
|Bore / Inner Diameter MM||57.15|
|Number of Mounting Holes||4|
|Bolt Center to Center Inch||5.625|
|Bolt Center to Center MM||142.88|
|Bearing Locking Style||Set Screw|
|Rolling Element||Ball Bearing|
|Housing Material||Cast Iron|
|Housing Style||4 Bolt Square Flange Block|
|Length Across Bore Inch||1.984|
|Length Across Bore MM||50.4|
