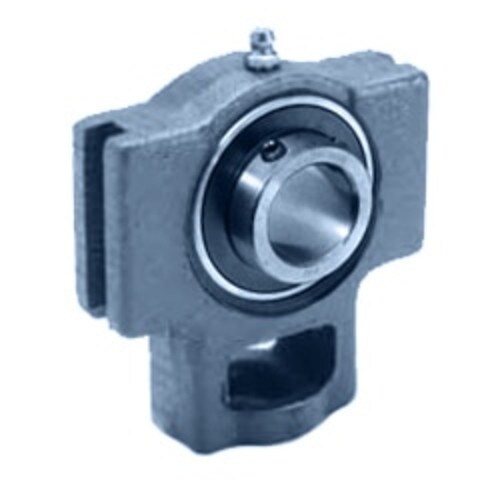

125363 WSTU-SC-200 - DODGE
- Length Across Bore Inch: 4.17
- Length Across Bore MM: 105.918
- Slot to Slot Distance Inch: 4
- Slot to Slot Distance MM: 101.6
- Slot Width Inch: 0.688
- Slot Width MM: 17.475
- Bearing Insert Part Number: INS-SC-200
- Bore / Inner Diameter Inch: 2
SPECIFICATIONS
Length Across Bore Inch | 4.17 |
---|---|
Length Across Bore MM | 105.918 |
Slot to Slot Distance Inch | 4 |
Slot to Slot Distance MM | 101.6 |
Slot Width Inch | 0.688 |
Slot Width MM | 17.475 |
Bearing Insert Part Number | INS-SC-200 |
Bore / Inner Diameter Inch | 2 |
Bore / Inner Diameter MM | 50.8 |
Housing Style | Unit Only |
Housing Material | Cast Iron |
Bearing Locking Style | Set Screw |
Nom Bolt Circle Dia Round Inch | 9.9 |
Nom Bolt Circle Dia Round MM | 251.46 |
Compatible Take-Up Frame | WS400 |
