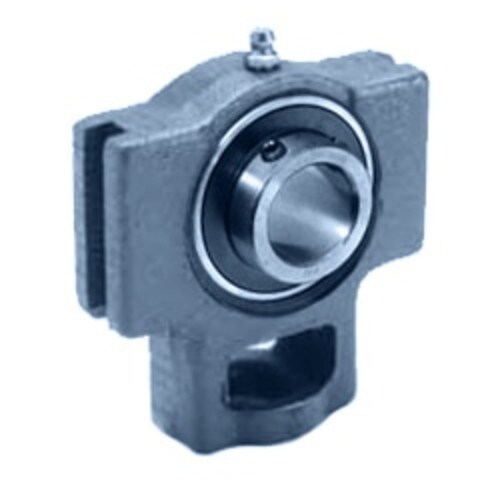

125151 WSTU-SC-110L - DODGE
- Length Across Bore Inch: 2.625
- Length Across Bore MM: 66.675
- Slot to Slot Distance Inch: 4
- Slot to Slot Distance MM: 101.6
- Slot Width Inch: 0.688
- Slot Width MM: 17.475
- Bearing Insert Part Number: INS-SC-110L
- Bore / Inner Diameter Inch: 1.625
SPECIFICATIONS
| Length Across Bore Inch | 2.625 |
|---|---|
| Length Across Bore MM | 66.675 |
| Slot to Slot Distance Inch | 4 |
| Slot to Slot Distance MM | 101.6 |
| Slot Width Inch | 0.688 |
| Slot Width MM | 17.475 |
| Bearing Insert Part Number | INS-SC-110L |
| Bore / Inner Diameter Inch | 1.625 |
| Bore / Inner Diameter MM | 41.275 |
| Housing Style | Unit Only |
| Housing Material | Cast Iron |
| Bolt Center to Center Inch | 5.7 |
| Bolt Center to Center MM | 146.5 |
| Bearing Locking Style | Set Screw |
| Base to Center Height Inch | 1.875 |
| Base to Center Height MM | 47.625 |
| Compatible Take-Up Frame | WS400 |
