1200-8M-50 - BESTORQ

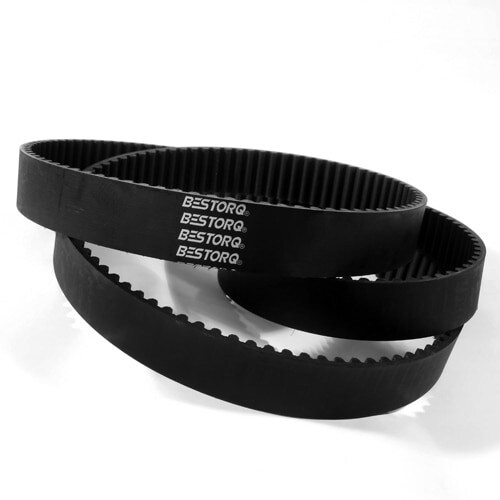

The 1200-8M-50 from Bestorq is a black-rubber, trapezoidal-tooth timing belt. The belt has 60 teeth and exceeds USA Rubber Manufacturers Association rating guidelines. Throughout the belt, high-temperature chloroprene polymer is utilized. All materials throughout the belt have been tested for performance resistance to wear and for smooth running.
The Bestorq 1200-8M-50 is offered as an alternative to chain drives and is meant to run in a cleaner fashion, operate lube-free at a quieter operation volume, and be provided at a lower cost. It can be used for a wide variety of projects whether for home or industrial use. Some examples include treadmills, water pumps, vacuums, copiers, and other equipment. It is designed to be able to match in a set with any other 1200-8M-50 belts offered by Bestorq.
SPECIFICATIONS
| Belt Width Inch | 1.97 |
|---|---|
| Belt Width MM | 50.00 |
| Timing Belt Pitch Inch | 0.31 |
| Timing Belt Pitch MM | 8 |
| Outside Belt Diameter Inch | 47.24 |
| Outside Belt Diameter MM | 1200.00 |
| Number of Teeth | 150 |
| Belt Thickness / Sidewall Depth Inch | 0.22 |
| Belt Thickness / Sidewall Depth MM | 5.70 |
| GTIN | 840593164808 |
| Model Number | 1200-8M-50 |
