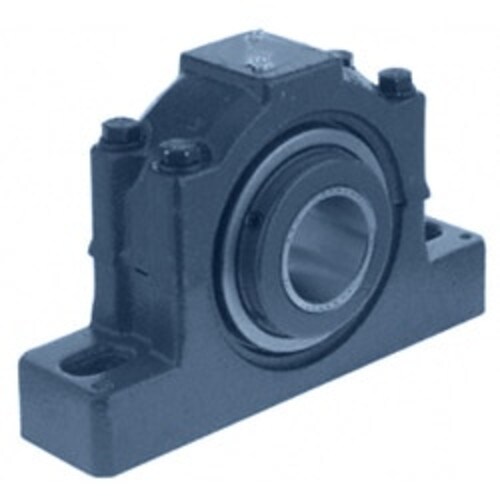

023170 P2B-K-107R - DODGE
- Bore / Inner Diameter Inch: 1.438
- Bore / Inner Diameter MM: 36.525
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 6.4
- Bolt Center to Center MM: 165
- Max Nom Bolt Ctr to Ctr Inch: 6.625
- Max Nom Bolt Ctr to Ctr MM: 168.275
- Bearing Locking Style: Concentric Collar
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.438 |
|---|---|
| Bore / Inner Diameter MM | 36.525 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 6.4 |
| Bolt Center to Center MM | 165 |
| Max Nom Bolt Ctr to Ctr Inch | 6.625 |
| Max Nom Bolt Ctr to Ctr MM | 168.275 |
| Bearing Locking Style | Concentric Collar |
| Rolling Element | Tapered Roller Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Min Nom Bolt Ctr to Ctr Inch | 6.25 |
| Min Nom Bolt Ctr to Ctr MM | 158.75 |
| Base to Center Height Inch | 2.375 |
| Base to Center Height MM | 60.325 |
